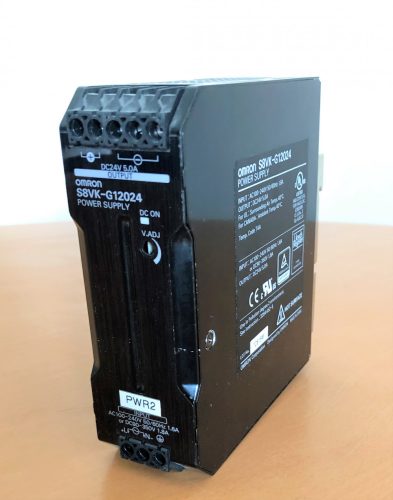

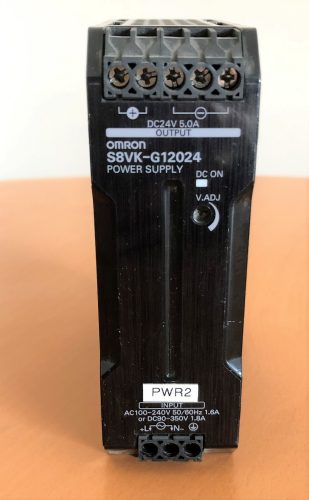

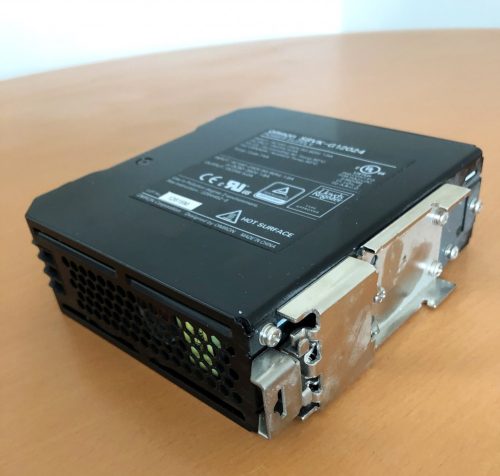

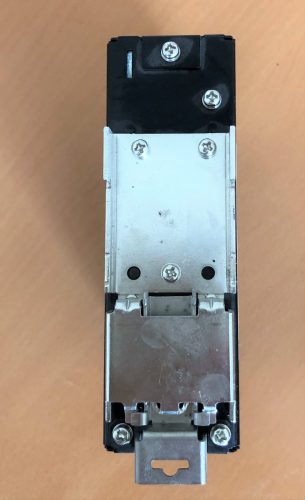

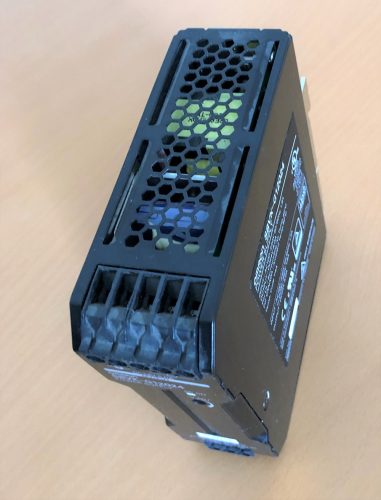

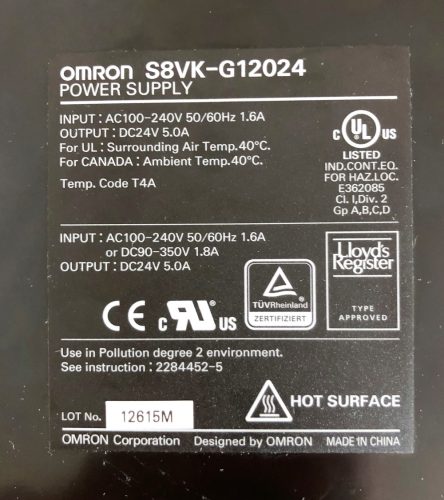

OMRON S8VK-G12024 AC100-240V 50/60Hz 1.6A DC24V 5.0A power supply module/ax356

• Details
• Info

Details

Manufacturer: Omron
Type: S8VK-G12024
1. secondary output voltage: 21.6 - 27.6 V
Built-in height: 135 mm
Built-in width: 40 mm
Degree of protection (IP): IP20
Width: 40 mm
Height: 125 mm
Depth: 113 mm
Weight: 0.620 kg (each)
Direct installation possible: No
ETIM class: DC power supply
ETIM group: Low-voltage industrial components
Max. output current 1:5A
Modular version: Yes
Rated output current 1:5A
Rated output voltage 1:24V
Stabilized output voltage: No
Power level acc. EN ISO 13849-1: None
Energy consumption: 161VA
Power: 120W
Mounting on a rail is possible: Yes
Nominal supply voltage at AC 50 Hz: 100-240V
Nominal supply voltage at AC 60 Hz: 100-240V
Nominal supply voltage on DC: 90-350V
Adjustable secondary voltage: No
Short-circuit proof: No
Suitable for safety features: Yes
Type of electrical connection: Screw connection
Power supply voltage type: AC DC
Wall mounting possible: Yes
Width in the number of modular distances: 1

Info

Manufacturer:

Omron

Type:

S8VK-G12024
