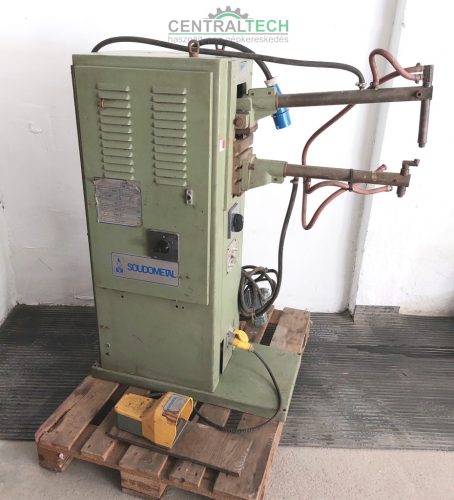

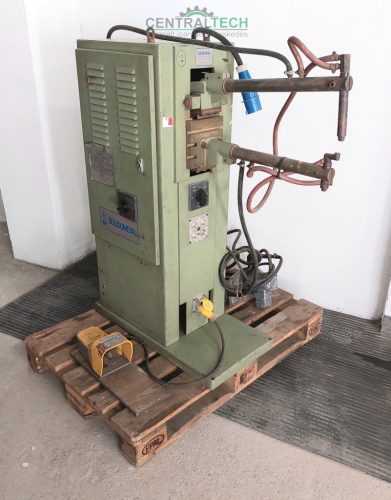

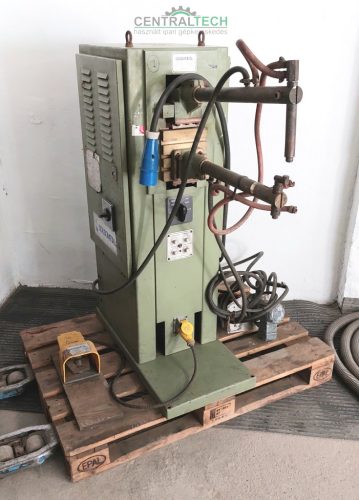

Spot welding machine 14kVa 450mm arm Soudometal SP14P
1 651 €
Spot welding machine 14kVa 450mm arm Soudometal SP14P
1 651 €
Spot welding machine Soudometal SP14P
maximum welding current at 50 ED: 14 kVA
max. welding power 42 kVA
Electrode force: 30-200 DAN
Electrode stroke = 30-110 mm
Projection: 450 mm
Mains connection 380V / 42A
secondary current continuous current 1.85 kA; kA short-circuit current 12.5 kV;
Electrode force: 30-200 DAN

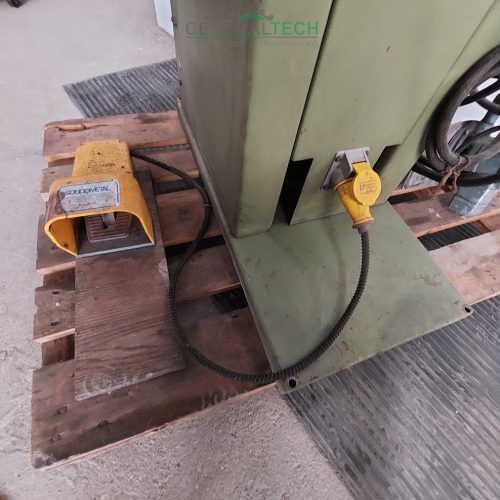

foot control
Cooling water volume: 3 l/min
Electrode arm Ø: 45 mm
Electrode holder Ø: 25 mm
Machine weight: 300 kb kg
Dimensions: 1250x1100x450 mm
maximum welding current at 50 ED: 14 kVA
max. welding power 42 kVA
Electrode force: 30-200 DAN
Electrode stroke = 30-110 mm
Projection: 450 mm
Mains connection 380V / 42A
secondary current continuous current 1.85 kA; kA short-circuit current 12.5 kV;
Electrode force: 30-200 DAN
foot control
Cooling water volume: 3 l/min
Electrode arm Ø: 45 mm
Electrode holder Ø: 25 mm
Machine weight: 300 kb kg
Dimensions: 1250x1100x450 mm
